Air Receiver

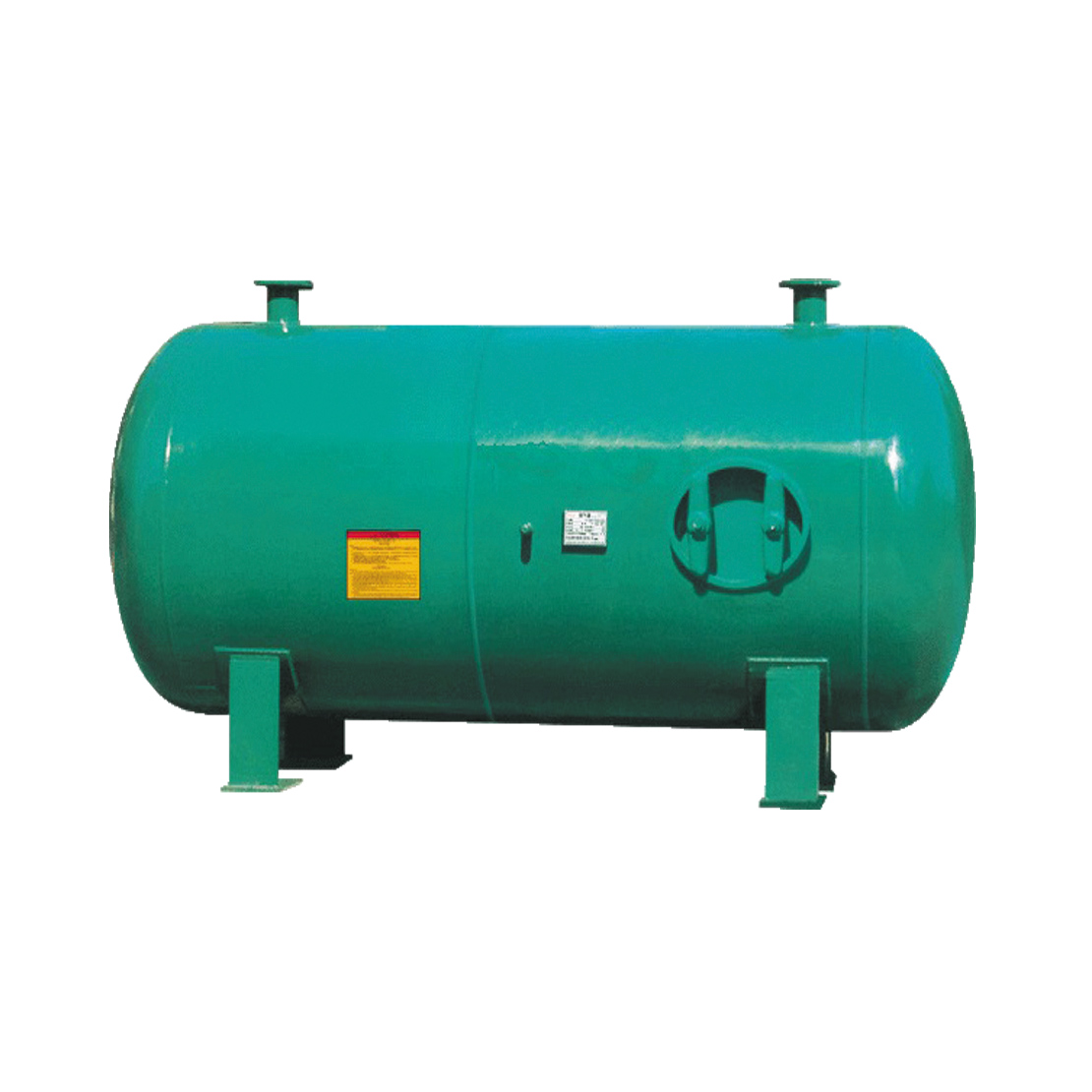

Air receiver, also known as pressure vessel or storage tank, it mainly used to store compressed air, it have following function:
◆ Store compressed air;
◆ Buffer pressure, due to compressor discharged air pressure fluctuations, after air receiver, compressed air will be more stable at gas side.
◆ Drain water, water vapor in the air form to liquid after compressed by compressor, most of these water droplets will deposit at the bottom of air receiver, and they will be discharged by drain valve automatically or manually.
Model Interpretation & Selection:
Example: C-0.3/8
“C” means air receiver;
“0.3” is the capacity of 0.3 M3;
“8” means maximum working pressure is 8 bar.
The optional air receiver pressure should be consistent with compressor working pressure, receiver volume size should be about 1/5-1/10 of the air flow of compressor; certainly, larger volume air receiver will help to store more compressed air and better to dewater.

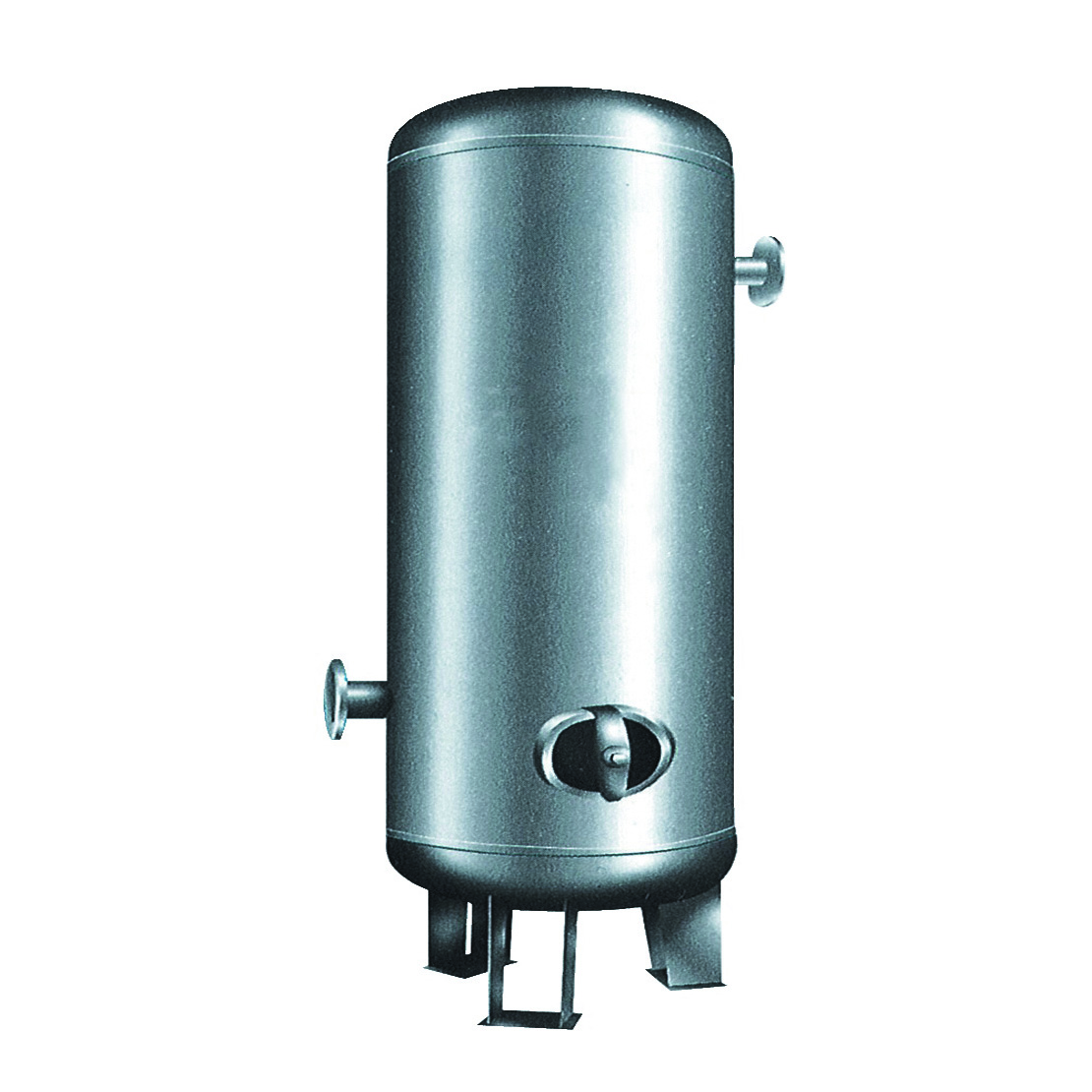

Carbon steel air receiver tank: MODEL VOLUME M3 PRESSURE INNER DIA. ￠1 OVERALL H H1 MATERIAL SAFETY VALVE PATH C CONNECTION a.b BAR C-0.3/8 C-0.3/10 C-0.3/13 0.3 8 10 13 550 1589 1589 1593 Q235-B Q235-B Q235-B RP 1/2 RP 1 1/2 / DN 50 C-0.6/8 C-0.6/10 C-0.6/13 0.6 8 10 13 700 700 650 1900 1902 2068 Q235-B Q235-B Q235-B RP 1/2 RP 1 1/2 / DN 50 C-1/8 C-1/10 C-1/13 1 8 10 13 800 2205 2207 2205 Q235-B Q235-B Q345R RP 3/4 RP 2 / DN 65 C-1.5/8 C-1.5/10 C-1.5/13 1.5 8 10 13 1000 2265 2265 2817 Q345R (16MnR) Q345R (16MnR) Q345R (16MnR) RP 3/4 RP 2 / DN 65 C-2/8 C-2/10 C-2/13 2 8 10 13 1000 2780 2780 2782 Q345R (16MnR) Q345R (16MnR) Q345R (16MnR) RP 1 1/4 RP 2 / DN 80 C-2.5/8 C-2.5/10 C-2.5/13 2.5 8 10 13 1000 3300 3300 3302 Q345R Q345R Q345R (16MnR) RP 1 1/4 DN 80 C-3/8 C-3/10 C-3/13 3 8 10 13 1200 2880 2882 2372 Q345R Q345R Q345R (16MnR) RP 1 1/4 DN 80 C-4/8 C-4/10 C-4/13 4 8 10 13 1400 3030 3032 3036 Q345R Q345R Q345R (16MnR) RP 1 1/2 DN 100 C-5/8 C-5/10 C-5/13 5 8 10 13 1400 3630 3632 3636 Q345R Q345R Q345R (16MnR) RP 2 DN 100 C-6/8 C-6/10 C-6/13 6 8 10 13 1400 4230 4232 4236 Q345R Q345R Q345R (16MnR) RP 2 DN 100 Stainless steel air receiver tank: MODEL VOLUME M3 PRESSURE INNER DIA. ￠1 OVERALL H H1 MATERIAL SAFETY VALVE PATH C CONNECTION a.b BAR C-0.3/8 C-0.3/10 C-0.3/13 0.3 8 10 13 600 1308 1308 1310 S30408 RP 3/4 RP 1 1/2 C-0.6/8 C-0.6/10 C-0.6/13 0.6 8 10 13 600 2058 2058 2060 S30408 RP 1/2 RP 1 1/2 C-1/8 C-1/10 C-1/13 1 8 10 13 800 2183 2185 2187 S30408 RP 1 RP 1 1/2 / DN 65 C-1.5/8 C-1.5/10 C-1.5/13 1.5 8 10 13 850 2689 2691 2693 S30408 RP 1 RP 1 1/2 / DN 65 C-2/8 C-2/10 C-2/13 2 8 10 13 1000 2770 2772 2774 S30408 RP 1 1/4 RP 2 / DN 80 C-2.5/8 C-2.5/10 C-2.5/13 2.5 8 10 13 1000 3270 3272 3274 S30408 RP 1 1/4 DN 80 C-3/8 C-3/10 C-3/13 3 8 10 13 1200 2865 2867 2871 S30408 RP 1 1/2 DN 80 C-4/8 C-4/10 C-4/13 4 8 10 13 1400 3022 3024 3028 S30408 RP 1 1/2 DN 100 C-5/8 C-5/10 C-5/13 5 8 10 13 1400 3522 3524 3528 S30408 RP 2 DN 100 C-6/8 C-6/10 C-6/13 6 8 10 13 1400 4022 4024 4028 S30408 RP 2 DN 100 Vacuum Tank: MODEL VOLUME M3 PRESSURE INNER DIA. ￠1 OVERALL H H1 MATERIAL WEIGHT KGS CONNECTION a.b BAR C-0.3/-1 0.3 -1 550 1569 Q235-B 99 RP 1 1/2 C-0.5/-1 0.5 -1 600 2035 Q235-B 167 RP 1 1/2 C-0.6/-1 0.6 -1 700 1880 Q235-B 167 RP 1 1/2 C-1.0/-1 1.0 -1 800 2180 Q235-B 263 RP 1 1/2 C-1.5/-1 1.5 -1 900 2502 Q235-B 367 RP 2 C-2.0/-1 2.0 -1 1000 2754 Q235-B 527 RP 2 C-2.5/-1 2.5 -1 1000 3254 Q235-B 643 RP 2 C-3.0/-1 3.0 -1 1200 2854 Q235-B 679 DN 65 C-4.0/-1 4.0 -1 1400 3006 Q345R 913 DN 65 C-5.0/-1 5.0 -1 1400 3606 Q345R 1076 DN 65 C-6.0/-1 6.0 -1 1400 4206 Q345R 1240 DN 65
