The compressed air contains moisture with the relative humidity of 100%.As the compressed air cools in the pipeline, the moisture will precipitate. The appearance of water in an air compressor system will bring many drawbacks, such as increasing operation and maintenance costs as well as increasing the investment in production line equipment. Also, the quality of the compressed air will be affected.
The function of an air dryer is to forcibly cool the compressed air to required dew point temperature, thus making the water vapor contained therein condense into droplets and discharging the droplets through a drainage device.
Our air dryers are divided into three types, i.e,the room temperature and high temperature refrigerated type, no heat and micro heat desiccant type, as well as no heat and micro heat combined type. Customers can choose an appropriate type of air drying machine according to the actual site conditions. Alternatively, they can turn to us for one-stop service.
Related Names
Compressed Air Dryer/Air Drying Machine/Industrial Air Dryer

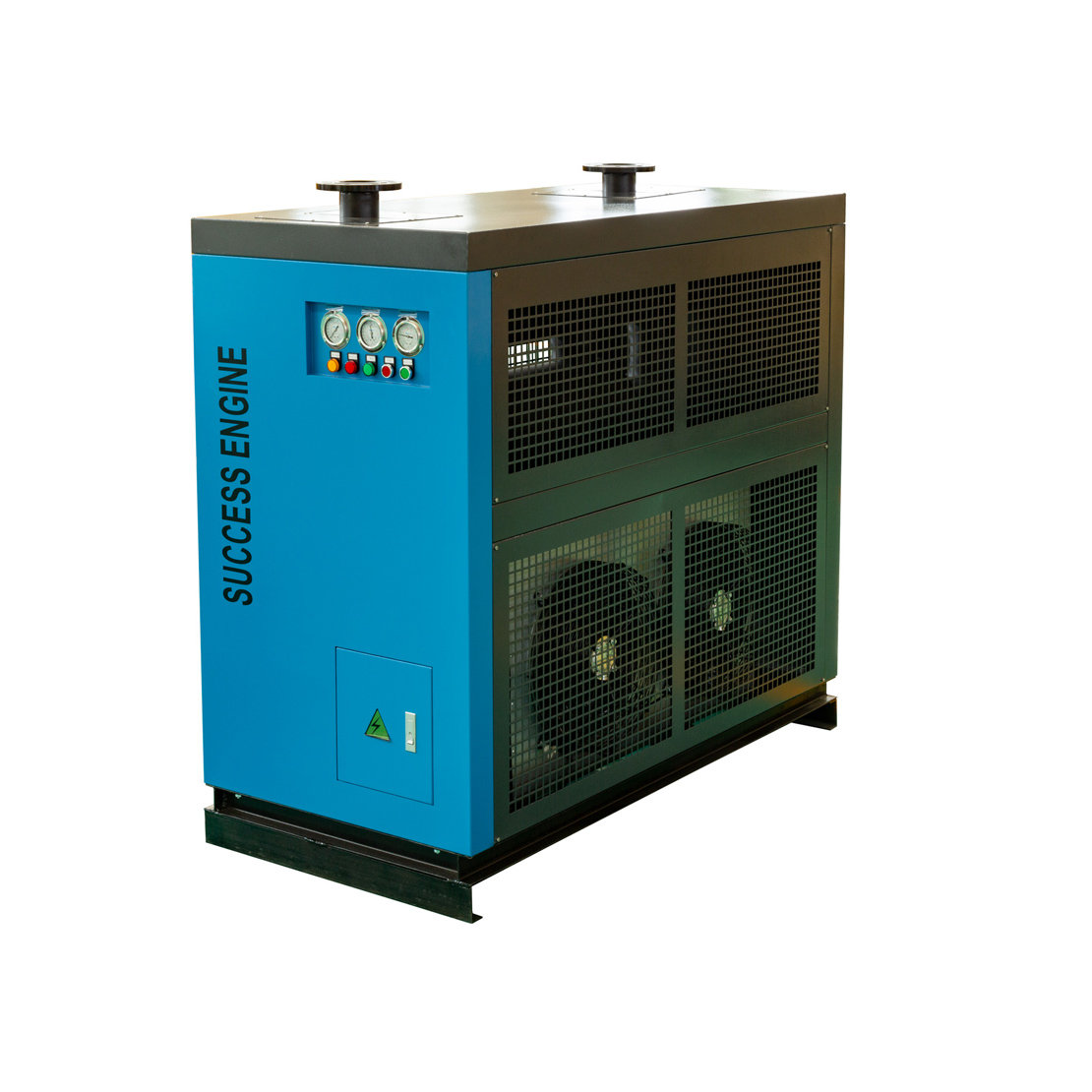

Refrigerated Air Dryers
According to the corresponding relationship between the saturated water vapor pressure and temperature, the refrigerated air dryer uses the refrigerating capacity produced by a refrigerating system to cool the compressed air to a certain point temperature. The water vapor,oil,and dust are separated from the compressed air. After processed by an oil-air separator and electric drainage device, the water is discharged, thus achieving the purpose of drying and cleaning the compressed air.
According to different intake air temperature, our refrigerated air dryers are divided into normal temperature type(≤45℃)and high temperature(≤80℃)type. Customers can choose an appropriate type in accordance with the actual site conditions.

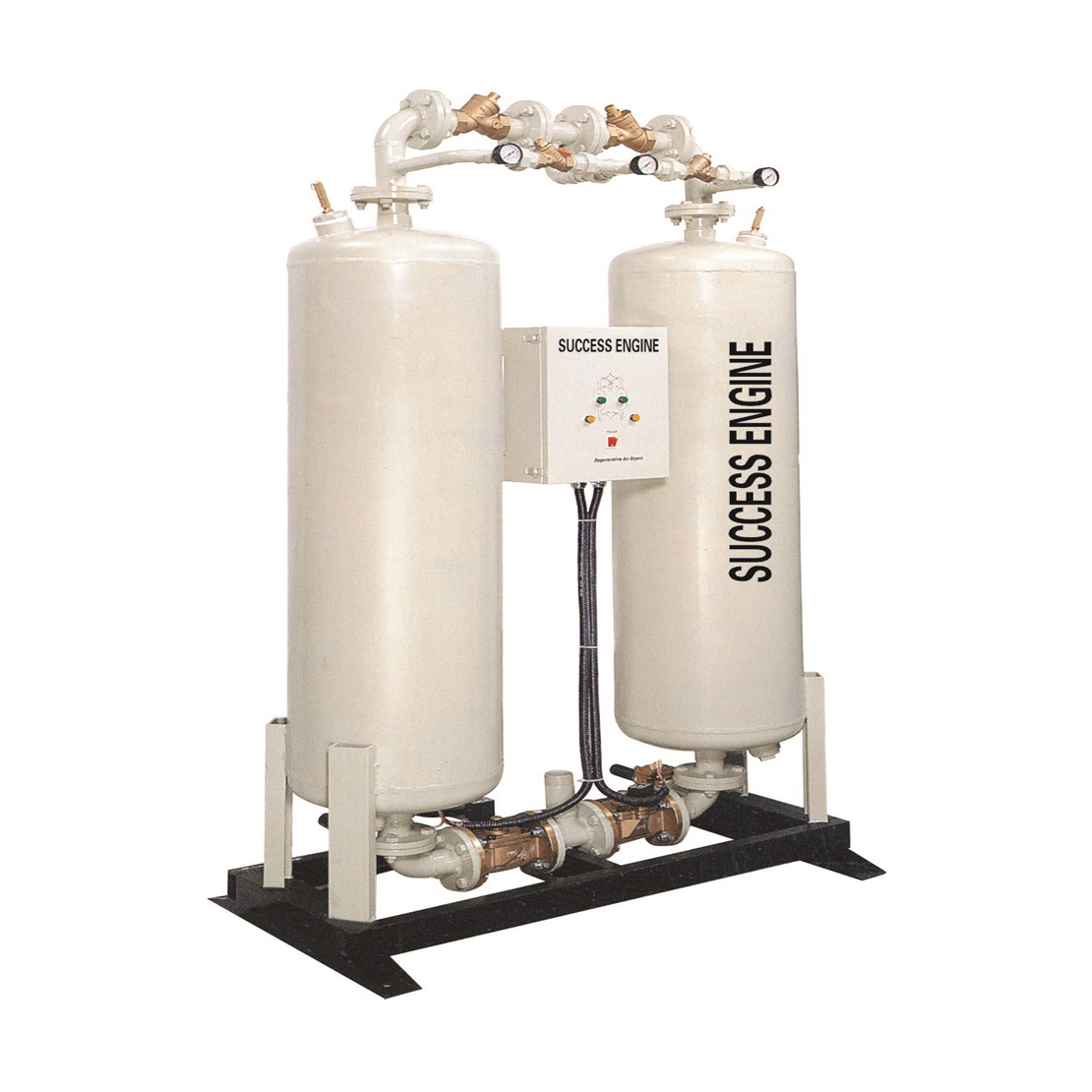

Desiccant Air Dryers
The desiccant air dryer uses molecular sieve or alumina as the desiccant to adsorb moisture in the compressed air under a certain working pressure. Then,re-lead a part of dry air from the dryer outlet for desorption at atmospheric pressure.One tower is for water adsorption and another for desorption and regeneration.The two towers can work continuously to provide the air consuming equipment with dry,clean compressed air.
The twin tower dryer is widely used for outdoor applications requiring compressed air in cold areas,indoor applications requiring compressed air of long-distance pipeline transportation,and manufacturing process requiring deep drying,such as advanced spraying,jet flow control,polyester spinning etc.
According to the demand on the air consumption for regeneration,the desiccant air dryer are divided into no heat type and micro heat type.
Combined Air Dryers
The high-temperature high humidity air from the compressor firstly exchanges heat in the pre-cooler with the cold air from the evaporator for cooling and dehumidification.Then,the air enters the evaporator to exchange heat with the refrigerant.After this exchange,the air temperature is reduced to 2 to 10℃.Then,after the processing in the air-water separator,a large number of condense water is discharged and dry air is obtained.
The air coming from the gas-water separator enters the pre-cooler to exchange heat with the hot and humid air from the compressor.The compressed air from the cooling unit enters the efficient degreaser for oil removal.It obtained.After filtered,it is directly supplied to air consuming equipment.
In a limited space,our combined air dryers provide the cleanest compressed air with minimum air consumption.
Refrigeration Air Dryer Model Capacity Electricity （V/P/Hz） Power (W) Dimension L×W×H (mm) Weight (KG) Inlet/Outlet (M3/MIN) DA-14 1.4 220/1/50 800 640×350×590 60 G 1 DA-18 1.8 220/1/50 800 640×350×590 60 G 1 DA-26 2.6 220/1/50 800 640×350×590 60 G 1 DA-38 3.8 220/1/50 1200 750×460×680 78 G 1 DA-55 5.5 220/1/50 1300 810×460×680 85 G 1 1/2 DA-69 6.9 220/1/50 1400 980×520×735 120 G 1 1/2 DA-85 8.5 220/1/50 2500 1100×645×975 150 G 2 DA-108 10.8 380/3/50 3100 1350×690×1120 195 DN50 DA-145 14.5 380/3/50 3200 1500×775×1110 250 DN50 DA-165 16.5 380/3/50 3300 1500×775×1110 280 DN65 DA-195 19.5 380/3/50 4800 1500×775×1110 320 DN65 DA-225 22.5 380/3/50 4800 1500×775×1110 320 DN65 DA-285 28.5 380/3/50 5200 1510×850×1360 420 DN80 DA-360 36 380/3/50 5600 1510×850×1360 520 DN80 DA-430 43 380/3/50 6800 1510×850×1360 630 DN100 DA-520 52 380/3/50 7500 2060×860×1659 750 DN100 DA-630 63 380/3/50 8500 2060×860×1659 780 DN125 DW-800 80 380/3/50 9700 2060×1050×1560 950 DN125 (Dew point temperature: 2-10℃,inlet temperature:≤80℃) Desiccant Air Dryer MODEL CAPACITY INLET/OUTLET MEASUREMENT L×W×H（mm） NET WEIGHTH (KG) (M3/min) DH-12 1.2 G1 760×350×1650 121 DH-26 2.6 G1 760×350×1650 150 DH-36 3.6 G1 1/2 1200×500×1485 300 DH-55 5.5 G1 1/2 1200×520×1485 300 DH-69 6.9 DN 50 1200×500×1850 405 DH-85 8.5 DN 50 1200×500×1850 495 DH-110 11 DN 50 1300×500×1950 500 DH-135 13.5 DN 50 1300×550×1950 550 DH-170 17 DN 65 1300×550×2175 600 DH-220 22 DN 65 1300×550×2175 625 DH-270 27 DN 80 1500×600×2050 650 DH-320 32 DN 80 1500×600×2050 700 DH-450 45 DN 100 1600×700×2279 850 DH-550 55 DN 100 1600×700×2279 950 DH-650 65 DN 125 2100×900×2590 1050 DH-850 85 DN 125 2400×1050×2720 1250 DH-1100 110 DN 150 2760×1200×2900 1500 DH-1400 140 DN 150 2760×1200×2900 1800 (Heatless/heat, Dew point temperature:-20℃/-40℃/-70℃,inlet temperature:≤40℃) Combined Air Dryer Model Capacity Input Power (KW) Compressor Power (HP) Dimension L×W×H (mm) Weight (KG) Inlet/Outlet (M3/MIN) ZDA/W-108 10.8 3.15 3 1400x1200x2100 680 DN50 ZDA/W-145 14.5 3.3 3.5 1400x1200x2100 800 DN50 ZDA/W-165 16.5 3.4 4 1500x1400x2300 920 DN65 ZDA/W-195 19.5 4.9 5 1500x1500x2300 1000 DN65 ZDA/W-225 22.5 4.9 5 1500x1500x2300 1000 DN65 ZDA/W-285 28.5 5.3 5.75 1800x1800x2100 1150 DN80 ZDA/W-360 36.0 6.4 6 1800x1800x2100 1380 DN80 ZDA/W-450 45.0 7.2 7 2000x2000x2350 1800 DN100 ZDA/W-550 55.0 8.2 10 2060x2100x2520 2250 DN125 ZDA/W-630 63.0 9.5 12 2060x2100x2520 2520 DN125 ZDA/W-700 70.0 10.1 12 2060x2100x2520 2800 DN125 ZDA/W-800 80.0 12 16 2800x3000x2800 3200 DN125 ZDA/W-900 90.0 13.5 18 2800x3100x2900 4000 DN125 ZDA/W-1000 100.0 15 20 2800x3100x2900 4950 DN150 (Heatless/heat, Dew point temperature: -40℃/-70℃,inlet temperature:≤40℃)
