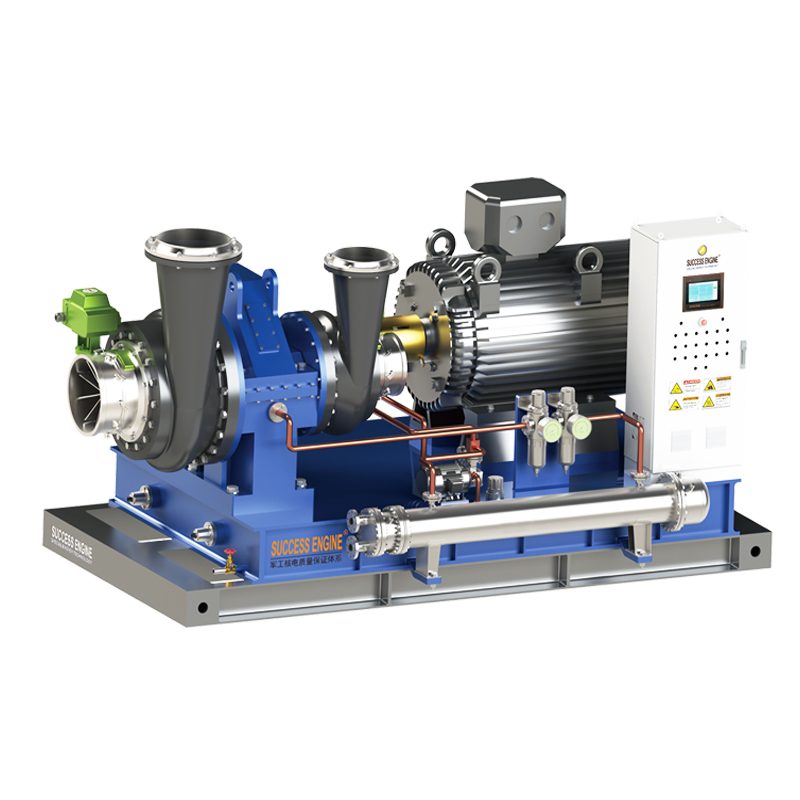

Centrifugal Vacuum Pump (big vacuum system)
Centrifugal vacuum pump: air volume: 60 ~ 1000 m3/min, vacuum degree: -40 ~ 80 kPa
SUCCESS ENGINE centrifugal vacuum pump is designed for high-flow vacuuming industries such as papermaking, chemical industry, and mining. It is manufactured and tested in accordance with the standards of military nuclear power quality assurance system. The impeller is made of aviation-grade high-strength alloy materials, which can be used for 300,000 hours without maintenance. (about 35 years), the control and drive system adopts frequency conversion and high-efficiency and energy-saving motors, which are intelligent, energy-saving and efficient, and are suitable for long-term stable operation in harsh environments such as high temperature and high humidity.
—Energy-saving tool for large-flow vacuum systems in papermaking:
Provide customized design according to user’s paper machine vacuum system, enables the equipment always working in energy-efficiency area, which can save 30-60% energy and 100% water for the papermaking vacuum system. Through the waste heat recovery system, the level of comprehensive energy utilization will be further improved. The investment recovery period is 8-18 months. One unit 500kW centrifugal vacuum pump can at least completely replace the water ring vacuum pump with a total power of 710kW. Each production line can save more than one million China Yuan in electricity per year.
Saving money is making money. After adopting our company's vacuum pump instead of its old water ring pump, one listed papermaking enterprise realized energy saving of 50% and increased production by 20% under the condition that other parts of the paper machine remained unchanged. Our vacuum pump has created the value of 100 million China Yuan every year for this papermaking company.
No need for grid expansion and space saving. With frequency conversion starting, and there is no impact on the power network. Compared with traditional vacuum systems, this equipment saves more than half of space.
Centrifugal Vacuum Pump Energy-Saving Data
(The equipment works according to 24 hours, 300 days per year, and the electricity fee is calculated at 0.7 Yuan/kWh.)
|
Installed Power(KW) |
500 |
1000 |
1500 |
2000 |
2500 |
3000 |
|
|
Water ring Pump Efficiency |
Energy Saving |
Saving electricity costs is equivalent to getting net profit (10,000 Yuan/Year) |
|||||
|
30% |
60% |
151.2 |
302.4 |
453.6 |
604.8 |
756 |
907.2 |
|
33% |
56% |
141.12 |
282.24 |
423.36 |
564.48 |
705.6 |
846.72 |
|
36% |
52% |
131.04 |
262.08 |
393.12 |
524.16 |
655.2 |
786.24 |
|
39% |
48% |
120.96 |
241.92 |
362.88 |
483.84 |
604.8 |
725.76 |
|
42% |
344% |
110.88 |
221.76 |
332.64 |
443.53 |
554.4 |
655.28 |
|
45% |
40% |
100.8 |
201.6 |
302.4 |
403.2 |
504 |
604.8 |
|
48% |
36% |
90.72 |
181.44 |
272.16 |
362.88 |
453.6 |
544.32 |
|
Model |
Motor Power KW |
Shaft Power KW |
Volume Flow m3/min |
Vacuum Degree Kpa |
|
GDV75 |
75 |
69.1 |
80 |
-40～-50 |
|
GDV110 |
110 |
95.3 |
120 |
-40～-50 |
|
GDV160 |
160 |
139.1 |
175 |
-40～-50 |
|
GDV200 |
200 |
174.7 |
220 |
-40～-50 |
|
GDV250 |
250 |
217.4 |
275 |
-40～-50 |
|
GDV280 |
280 |
246.1 |
310 |
-40～-50 |
|
GDV315 |
315 |
273.9 |
345 |
-40～-50 |
|
GDV355 |
355 |
309.6 |
390 |
-40～-50 |
|
GDV400 |
400 |
349.3 |
440 |
-40～-50 |
|
GDV450 |
450 |
396.9 |
500 |
-40～-50 |
|
GDV500 |
500 |
436.7 |
550 |
-40～-50 |
|
GDV560 |
560 |
484.3 |
610 |
-40～-50 |
|
GDV650 |
650 |
560 |
700 |
-40～-50 |
|
GDV760 |
760 |
660 |
830 |
-40～-50 |
|
GDV910 |
910 |
793 |
1000 |
-40～-50 |
| Note:1.Above Design Parameters are obtained based on below conditions:Suction Medium: Air, Relative Humidity: 65%, Suction Air Temperature: 35℃.
2. For special working conditions, the vacuum pump can be designed according to actual demands. |
||||
