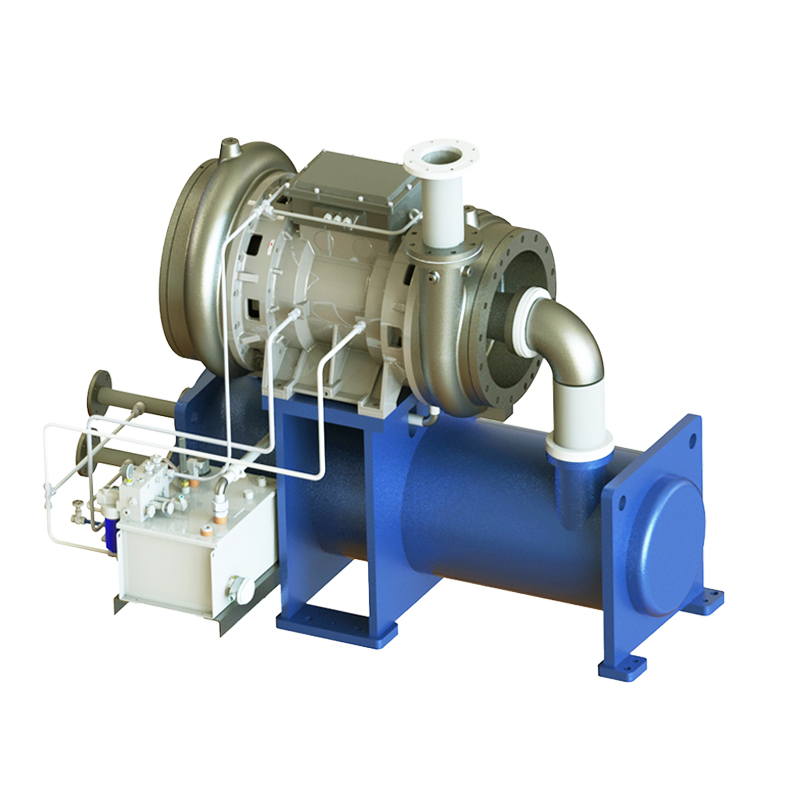

High speed direct drive centrifugal compressor
It adopts advanced high-speed frequency inverter motor directly connected to drive the centrifugal impeller, without the power consumption of coupling and speed-increasing gearbox, without the necessary air or electric power consumption for suspension bearing, and the efficiency is extremely high.
It overcomes the special working pressure conditions and immature defects where the suspension bearing is difficult to apply. The integrated box structure has low requirements for the application environment, low maintenance costs, convenient installation, small space, and wide adaptability. It is the first choice of energy-saving equipment for 1.5-4Bar oil-free gas supply industry.
Advantage is our direct driven screw air compressor
High-speed variable frequency direct drive motor + centrifugal impeller structure, widely used in textile, fermentation and other Low & medium pressure gas supply industries.
It is most suitable for continuous gas working conditions of 1.5-4Bar pressure.
High efficiency: Compared with normal compressors, the efficiency is increased by 30%.
No pollution: the discharged air is clean, free of oil and pollution.
|
Model |
Pressure / Air Flow |
Power |
Outlet connection |
Dimension |
|
|
GD75 |
2 / 32 |
2.5 / 28 |
75 |
DN100 |
1080*1250*1800 |
|
3 / 25 |
4 / 21 |
||||
|
GD90 |
2 / 39 |
2.5 / 36 |
90 |
||
|
3 / 34 |
4 / 27 |
||||
|
GD110 |
2 / 40 |
2.5 / 38 |
110 |
||
|
3 / 43 |
4 / 30 |
||||
|
GD132 |
2 / 60 |
2.5 / 38 |
132 |
DN125 |
1250*1450*1900 |
|
3 / 47 |
4 / 40 |
||||
|
GD160 |
2 / 72 |
2.5 / 64 |
160 |
||
|
3 / 57 |
4 / 49 |
||||
|
GD185 |
2 / 85 |
2.5 / 74 |
185 |
DN150 |
|
|
3 / 66 |
4 / 56 |
||||
