Air Suspension Blower
This type centrifugal blower adopts main core technologies such as air suspension bearing, permanent magnet ultra-high-speed motor and high-precision aviation-grade impeller. The unit consists of high-speed motor integrated impeller, soundproof cover, discharge taper pipe, vent valve, muffler, frequency converter, PCL controller and large-screen LCD touch screen.
The suspension bearing is different from the traditional ball bearing. There is no physical contact point between the shaft and bearing during operation, no need for lubricating oil, high efficiency, low loss, clean exhaust air, stable and durable, the number of starting can reach 100,000 times. It is an energy-saving tool in electronics, medicine, food, cement, water treatment and other industries.
Air suspension blower: flow: 17 ~ 420 m3/min, pressure: 40 ~ 100 kPa.
|
MODEL |
POWER |
PRESSURE |
AIR FLOWE |
OUTLET CONNECTION |
DIMENSION |
WEIGHT |
|
GDA22-06 |
22 |
60 |
20 |
DN150 |
1580*700*1300 |
525 |
|
GDA22-08 |
80 |
17 |
||||
|
GDA37-06 |
37 |
60 |
35 |
DN150 |
1580*700*1300 |
535 |
|
GDA37-08 |
80 |
28 |
||||
|
GDA55-04 |
55 |
40 |
74 |
DN200 |
1760*855*1550 |
750 |
|
GDA55-06 |
60 |
50 |
||||
|
GDA55-08 |
80 |
41 |
||||
|
GDA55-10 |
100 |
33 |
||||
|
GDA75-04 |
75 |
40 |
93 |
DN300 |
1760*855*1550 |
800 |
|
GDA75-06 |
60 |
65 |
DN200 |
|||
|
GDA75-08 |
80 |
53 |
||||
|
GDA75-10 |
90 |
45 |
||||
|

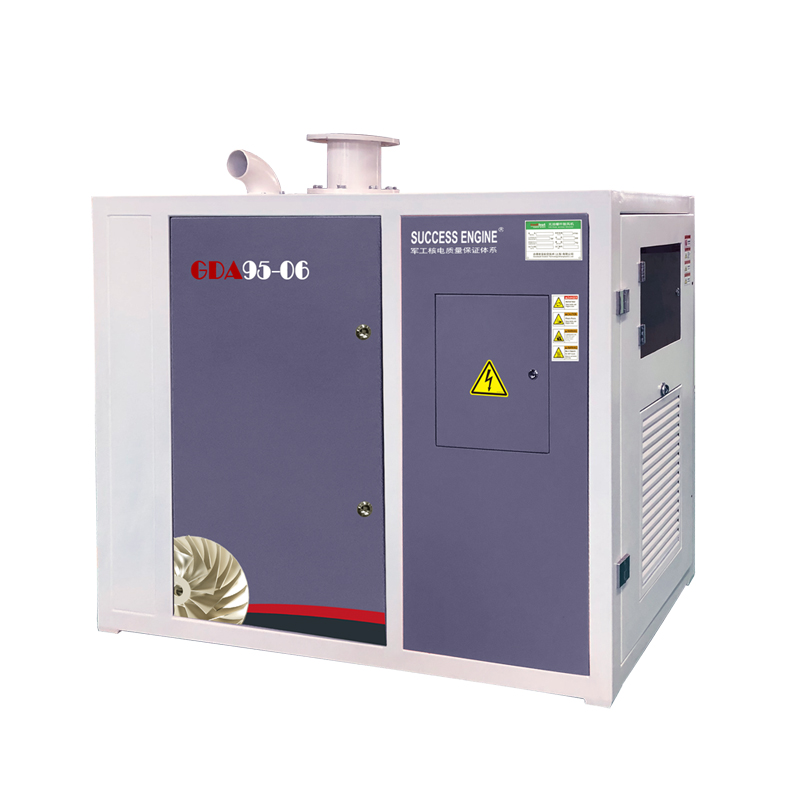

GDA95-06 |
95 |
60 |
81 |
DN250 |
1960*1020*1700 |
1020 |
|
GDA95-08 |
80 |
67 |
||||
|
GDA110-06 |
110 |
60 |
105 |
DN300 |
2000*1020*1710 |
1050 |
|

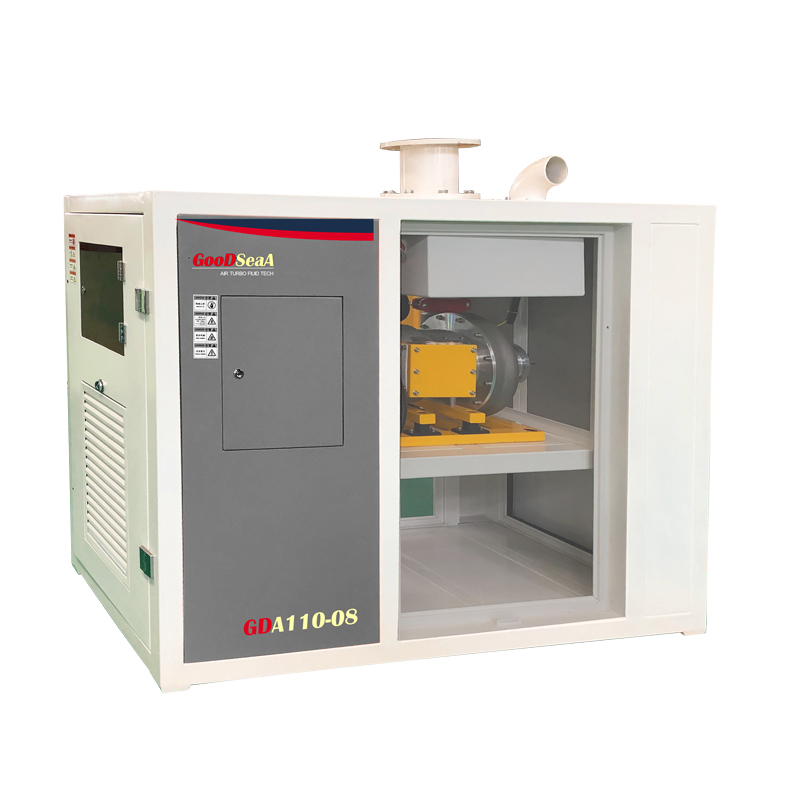

GDA110-08 |
80 |
85 |
DN250 |
|||
|
GDA110-10 |
100 |
65 |
||||
|
GDA150-06 |
150 |
60 |
136 |
DN250 |
2000*1020*1710 |
1090 |
|
GDA150-08 |
80 |
108 |
||||
|
GDA150-10 |
100 |
86 |
DN250 |
|||
|
GDA200-06 |
200 |
60 |
158 |
DN300 |
2000*1020*1710 |
1130 |
|
GDA200-08 |
80 |
132 |
||||
|
GDA200-10 |
100 |
103 |
||||
|
GDA225-06 |
225 |
60 |
208 |
DN400 |
2360*1300*2050 |
1590 |
|
GDA225-08 |
80 |
163 |
||||
|
GDA225-10 |
100 |
132 |
||||
|
GDA300-06 |
300 |
60 |
268 |
DN500 |
3020*1620*2050 |
2020 |
|
GDA300-08 |
80 |
213 |
DN400 |
|||
|
GDA300-10 |
100 |
170 |
||||
|
GDA375-06 |
375 |
60 |
318 |
DN500 |
3220*1760*2090 |
2050 |
|
GDA375-08 |
80 |
258 |
||||
|
GDA375-10 |
100 |
208 |
DN400 |
|||
|
GDA450-06 |
450 |
60 |
418 |
DN600 |
3520*1960*2000 |
2550 |
|
GDA450-08 |
80 |
320 |
||||
|
GDA450-10 |
100 |
258 |
DN500 |
