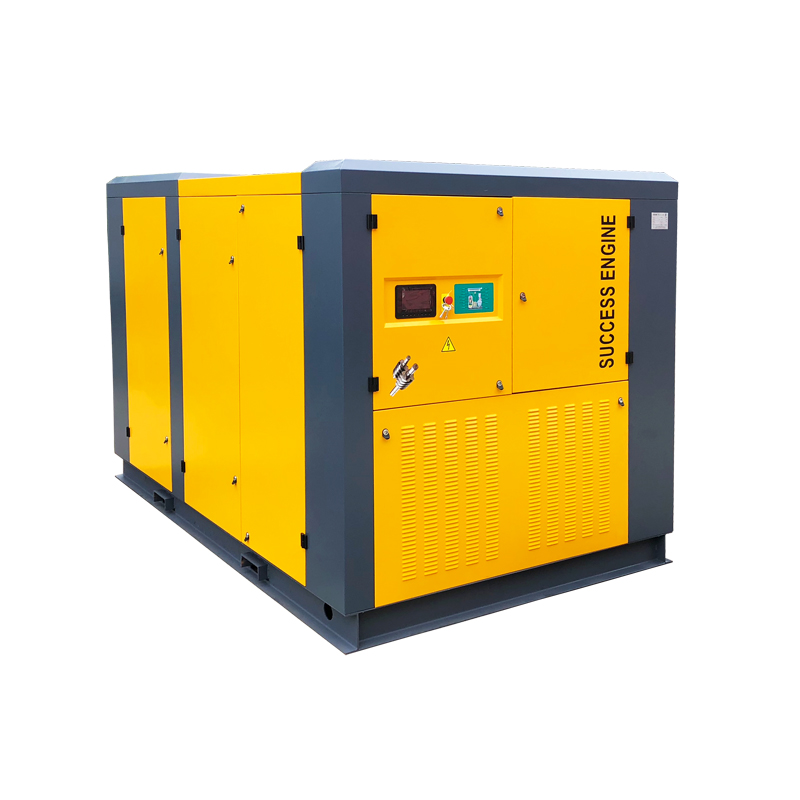

SUCCESS ENGINE Low Pressure Rotary Screw Air Compressors are designed to operate at lower pressures for special applications on textile, wastewater, water aeration, glass industry.
The pressure can be from 2.5-5bar, we offer a variety of different types: one stage & two stage, standard & PM VSD, oil-injected and oil free.
These compressors use less energy to achieve the desired air pressure, making them more efficient and cost-effective while utilizing reliable rotary screw technology.
|
Spec./Type |
Low Pressure Type |
|
Power KW(HP) |
45〜250 |
|
Pressure (bar) |
2..5〜5 |
|
Air Flow (M3/min) |
9.8〜65 |
SE45-160 (45-160KW) Series Oil-injected One Stage Screw Compressor Specifications
MODEL POWER PRESSURE AIR FLOW OUTLET CONNECTION WEIGHT (KG) DIMENSION L×W×H (mm) KW BAR M3/MIN SE45A-4 45 4 9.8 Rp 2 1450 2000x1200x1585 SE55A-4 55 4 12.6 Rp 2 1850 2200x1500x1785 SE75A-4 75 4 19.2 DN65 2300 2486x1700x1918 SE90A-4 90 4 22.6 DN65 2400 2486x1700x1918 SE110A-4 110 4 27.0 DN80 3000 2556x1750x1918 SE132A-4 132 4 31.2 DN80 3200 2556x1750x1918 SE160A-4 160 4 40.0 DN100 6500 3260x2050x2030 (Low pressure compressor can be 2.5-5bar, above flow is based on 4 bar pressure. ZW Series Water Injected Oil-free Type & ZA Series Dry Type Oil-free Type is also available. SUCCESS ENGINE reserves the right to update and adjust the parameters according to actual requirements.) SE90-250 (90-250KW) Series Oil-injected Two Stage Screw Compressor Specifications MODEL POWER PRESSURE AIR FLOW OUTLET CONNECTION WEIGHT (KG) DIMENSION L×W×H (mm) KW BAR M3/MIN SE90AE-4 90 4 23.3 DN65 2400 2486x1700x1918 SE110AE-4 110 4 28.3 DN80 3000 2556x1750x1918 SE132AE-4 132 4 33.8 DN80 3200 2556x1750x1918 SE160AE-4 160 4 43.8 DN100 6500 3260x2050x2030 SE180AE-4 180 4 50.5 DN125 8600 4280x2336x2180 SE220A(W)E-4 220 4 60.0 DN150 9000 4280x2336x2180 SE250A(W)E-4 250 4 65.0 DN150 9300 4280x2336x2180 (Low pressure compressor can be 2.5-5bar, above flow is based on 4 bar pressure. ZW Series Water Injected Oil-free Type & ZA Series Dry Type Oil-free Type is also available. SUCCESS ENGINE reserves the right to update and adjust the parameters according to actual requirements.)
