What is SUCCESS ENGINE Four-in-one Integrated Screw Air Compressor
To save user’s purchase and installation costs, and based on the high reliability, high efficiency, and easy operation design principle, SUCCESS ENINE has launched the tank mounted screw compressors with dryer and 3-class air filters. This type integrated package screw air compressor not only looks more beautiful, but also easy to use and movement. Once launched, it is welcomed and recognized by many users.

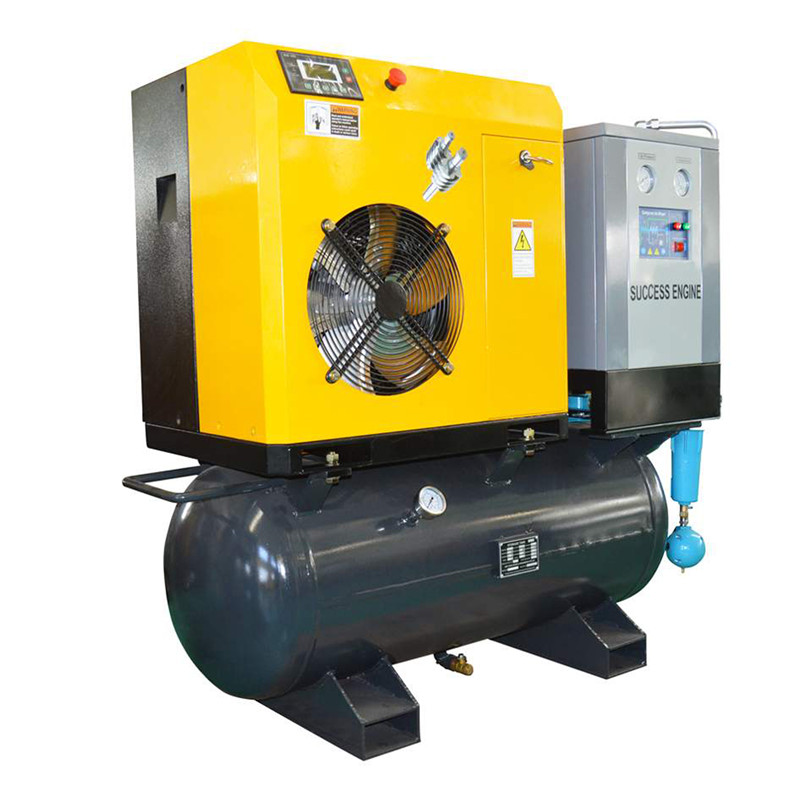

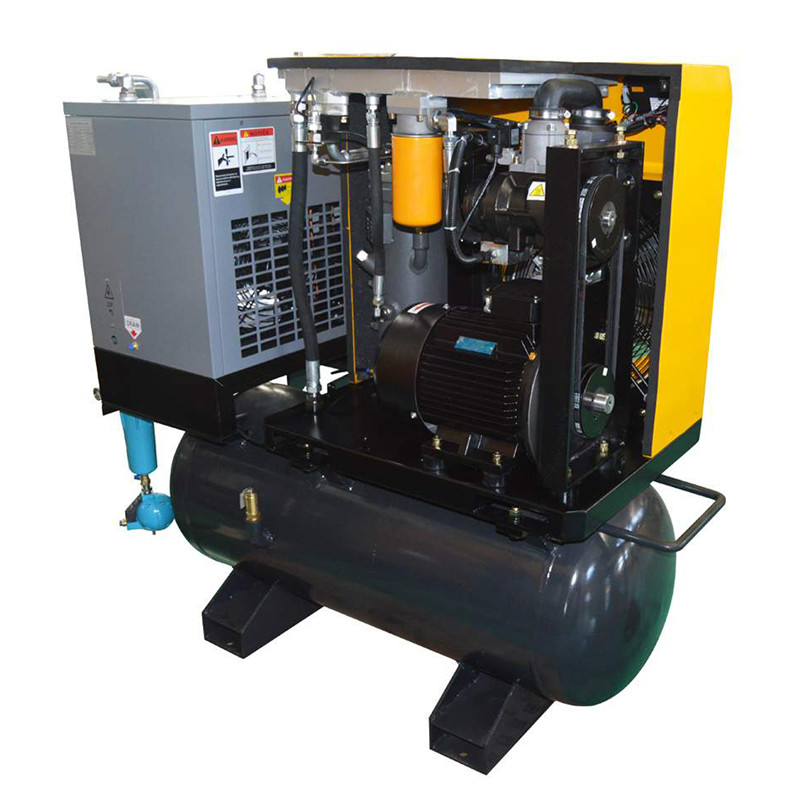

Compressor Picture
(â‘ -Screw Air Compressor â‘¡-Air Dryer â‘¢-Air Tank â‘£-Air Filter)
Advantages of SUCCESS ENGINE Four-in-one Integrated Screw Air Compressor
1)The air quality was significantly optimized after the integrated system, and so that the air can meet different industry’s needs.
2)Space saving, compact compressed air system.
3)Complete system, no additional drying system, no pipelines installation costs.
4)Easy to use, flexible and lightweight, users can get high-quality compressed air just after power-supply.
5)The integrated electric cabinet can control the compression system and the drying system at the same time, it has greatly improved the compressor system’s efficiency.
6)It can be modularly installed in the production line to improve the integrity of the production system.
7)Beautiful appearance, reliable performance and economic superiority.
|
MODEL |
POWER |
PRESSURE |
AIR FLOW |
Tank |
Air Dryer |
Air filters |
NOISE LEVEL dB(A) |
OUTLET CONNECTION |
WEIGHT KG |
DIMENSION L×W×H mm |
|||
|
kw |
hp |
bar |
psi |
m3/min |
cfm |
||||||||
|
SEC4A-7/T SEC4A-8/T SEC4A-10/T SEC4A-13/T |
4 |
5.5 |
7 8 10 13 |
101.5 116 145 188.5 |
0.5 0.5 0.4 0.25 |
17.65 17.65 14.12 8.825 |
250Litre |
DA-08 (0.8m3/min) |
SF18-P/A/F (1.8m3/min) |
60 |
Rp 3/4 |
250 |
1426x620x1420 |
|
SEC5A-7/T SEC5A-8/T SEC5A-10/T SEC5A-13/T |
5.5 |
7.5 |
7 8 10 13 |
101.5 116 145 188.5 |
0.8 0.8 0.63 0.5 |
28.24 28.24 22.24 17.65 |
250Litre |
DA-08 (0.8m3/min) |
SF18-P/A/F (1.8m3/min) |
60 |
Rp 3/4 |
270 |
1426x620x1420 |
|
SEC7A-7/T SEC7A-8/T SEC7A-10/T SEC7A-13/T |
7.5 |
10 |
7 8 10 13 |
101.5 116 145 188.5 |
1.15 1.15 1.0 0.79 |
40.60 40.60 35.30 27.89 |
250Litre |
DA-14 (1.4m3/min) |
SF18-P/A/F (1.8m3/min) |
62 |
Rp 3/4 |
290 |
1426x620x1420 |
|
SEC11A-7/T SEC11A-8/T SEC11A-10/T SEC11A-13/T |
11 |
15 |
7 8 10 13 |
101.5 116 145 188.5 |
1.80 1.80 1.50 1.20 |
63.54 63.54 52.95 42.36 |
250Litre |
DA-18 (1.8m3/min) |
SF18-P/A/F (1.8m3/min) |
66 |
Rp 3/4 |
330 |
1426x620x1420 |
Releted Products

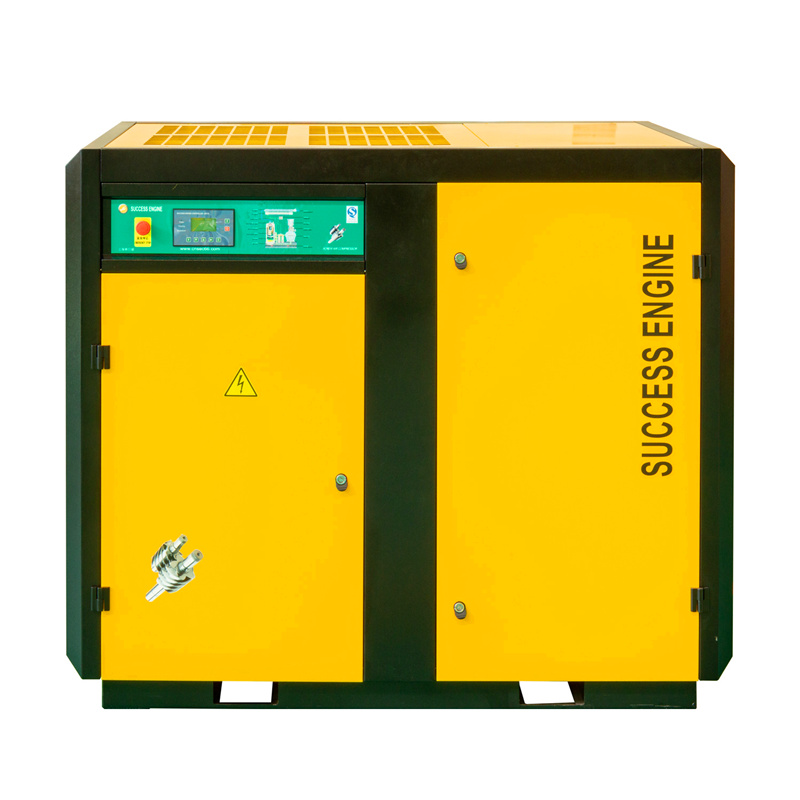

High-efficiency Intelligent Variable-frequency Screw Air Compressor
